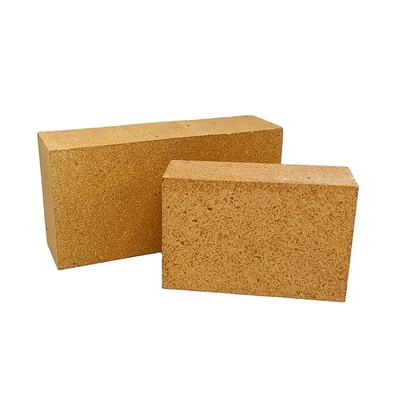

Name: Lightweight Low Thermal Conductivity Fireclay Insulation Brick
Brand: Lightweight Low Thermal Conductivity Fireclay Insulation Brick
SKU: sk30
Price: 365.00 USD
Availability: InStock
Rating: 5 (167 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Shape: Brick

Material: Aluminum silicate

SiO2 Content (%): 0

Al2O3 Content (%): 48%

MgO Content (%): 0%

CaO Content (%): 0.2%

Refractoriness (Degree): Common (1580Â°< Refractoriness< 1770Â°)

CrO Content (%): 0%

SiC Content (%): 0%

Model Number: sk30

Processing Service: Bending, Punching, Cutting, Moulding, To suppress

Product name: clay insulating fire brick

Application: Blast Furnace

Color: Red

Size: 230x114x65mm

Raw material: Al2O3

Feature: Low Thermal Conductivity

Product Type: Light Weight Brick

Thermal conductivity(w/mk): 7-12

Keyword: Jm-23 Insulation Brick

Packing: Standard Wooden Pallet

Grundinformation

Model Number: sk30

Zahlung und Versand AGB

Packaging Details: Zhengzhou Shuojin Refractory Material Co., Ltd. Fumigated wooden pallets or customized according to customer needs

Supply Ability: 1000 Ton/Tons per Month

Produkt-Beschreibung

Product Introduction

The refractoriness of clay bricks is comparable to that of silica bricks, up to 1690~1730℃, but the softening temperature under load is more than 200℃ lower than that of silica bricks. Because the clay brick contains mullite crystals with high refractoriness, it also contains nearly half of the low melting point amorphous glass phase.

Product Presentation

Mainly used for pizza stove, oven, masonry blast furnace, hot blast stove, electric stove top, blast furnace, reverberatory furnace, rotary kiln lining. In addition, high alumina bricks are also widely used as open hearth regenerative checker bricks, plugs for pouring systems, nozzle bricks, etc.

^{SK series}	^SK30	^SK32	^SK34	^SK35
^Al2O3%	^33%	^38%	^42%	^48%
^Fe2O3%	^<3	^<3	^<3	^<3
^Refractories	^{>1690 ℃}	^{>1730 ℃}	^{>1750 ℃}	^>1750℃
^{B.D g/cm3}	^1.9--2.0	^2.0--2.1	^2.1--2.18	^2.15--2.3
^{Unit Weight}	^>3.35KGS	^>3.55KGS	^>3.65KGS	^>3.75KGS
^A.P%	^<26	^<24	^<24	^<22
^C.C.S(Mpa)	^>20	^>25	^>30	^>35
^R.U.L(C)	^>1250	^>1300	^>1350	^>1420
^{R.U.L%(1350C, 2h)}	^{0-- -0.5}	^{0-- -0.5}	^{0-- -0.5}	^{0-- -0.5}
